585W,Half Cell,Higher Efficiency
We will contact you within 8 hours.
Contact UsBasic Info:

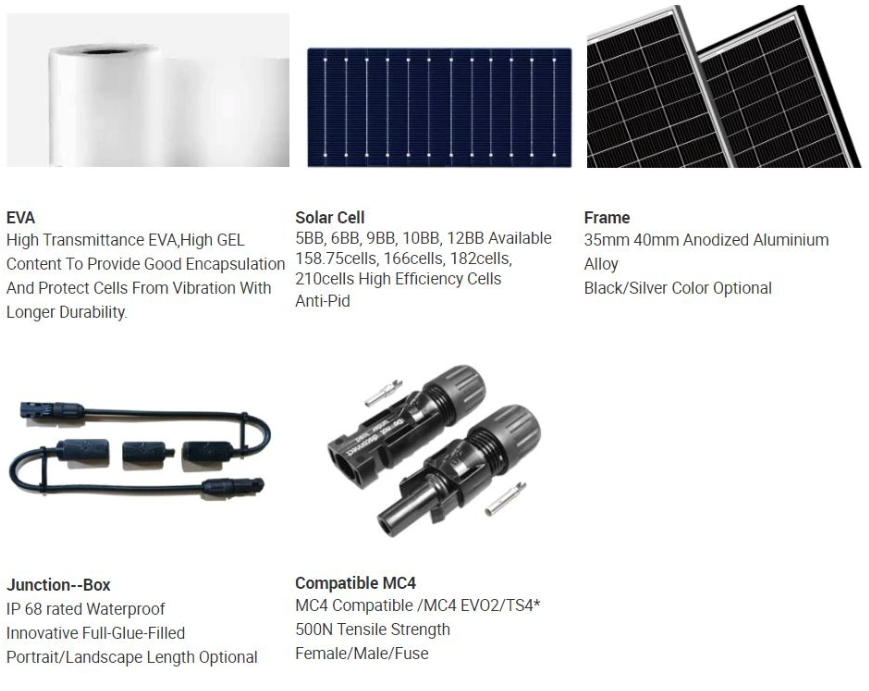

| Frame | Silver/Black Anodized Aluminium Alloy | Tpt Backsheet | White/Black Backsheet |
| Cable | PV Cable 4mm^2, 300/1400mm | Junction Box | IP68 Rated |
| Glass | 3.2mm Tempered Low Iron | Solar Cell | 5bb 6bb 9bb 10bb Mono |
| Weight | 27.5kgs | Transport Package | 31PCS/Pallet, Wooden Box |
Technical Specification Data of Solar Panel:
| Peak Power Watts-Pmax(Wp)* | 585 | 590 | 595 | 600 | 605 |
| Maximum Power Voltage-Vmpp(V) | 33.8 | 34 | 34.2 | 34.4 | 34.6 |
| Maximum Power Current-Impp(A) | 17.31 | 17.36 | 17.4 | 17.45 | 17.49 |
| Open Circuit Voltage-Voc(V) | 49 | 41.1 | 41.3 | 41.5 | 41.7 |
| Short Circuit Current-Isc(A) | 18.37 | 18.42 | 18.47 | 18.52 | 18.57 |
| Module Efficiency (%) | 20.7 | 20.8 | 21 | 21.2 | 21.4 |
| Power Output Tolerance-Pmax(W) | 0~+5 | ||||
| Temperature Coefficient of Pmax | -0.34%/ºC | ||||
| Temperature Coefficient of Voc | -0.25%/ºC | ||||
| Temperature Coefficient of Isc | 0.04%/ºC | ||||
| STC | Irradiance 1000W/m2, Cell Temperature 25, Air Mass AM1.5 | ||||
Packing & Delivery:
Solar Panel Packing Details : 30pcs per pallets, 2pcs per carton, or wooden box
Delivery Details : 5-7days
